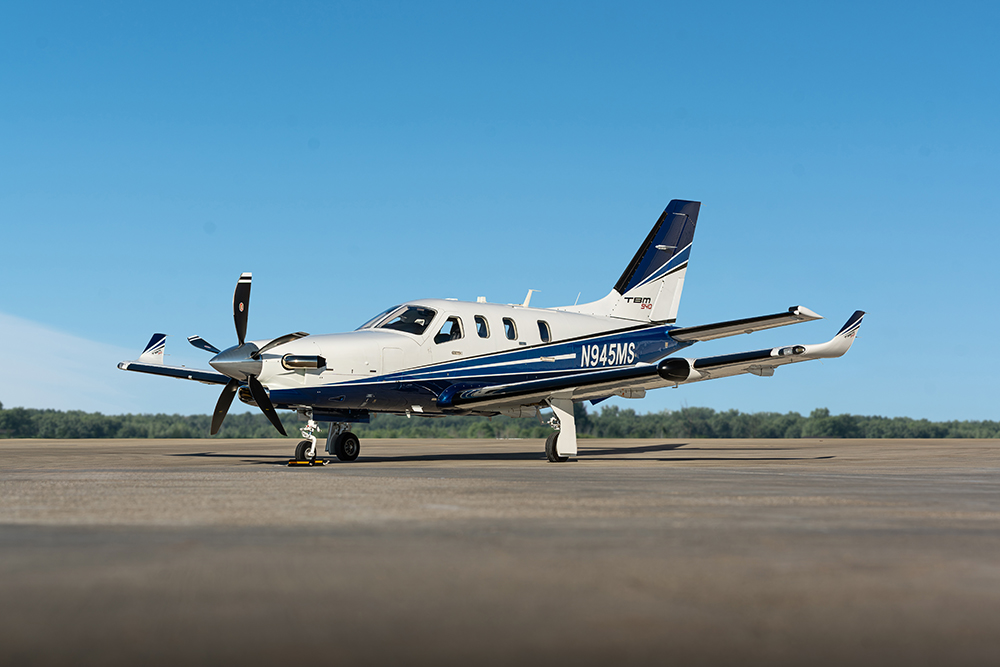

2021 Daher TBM 940

Avionics

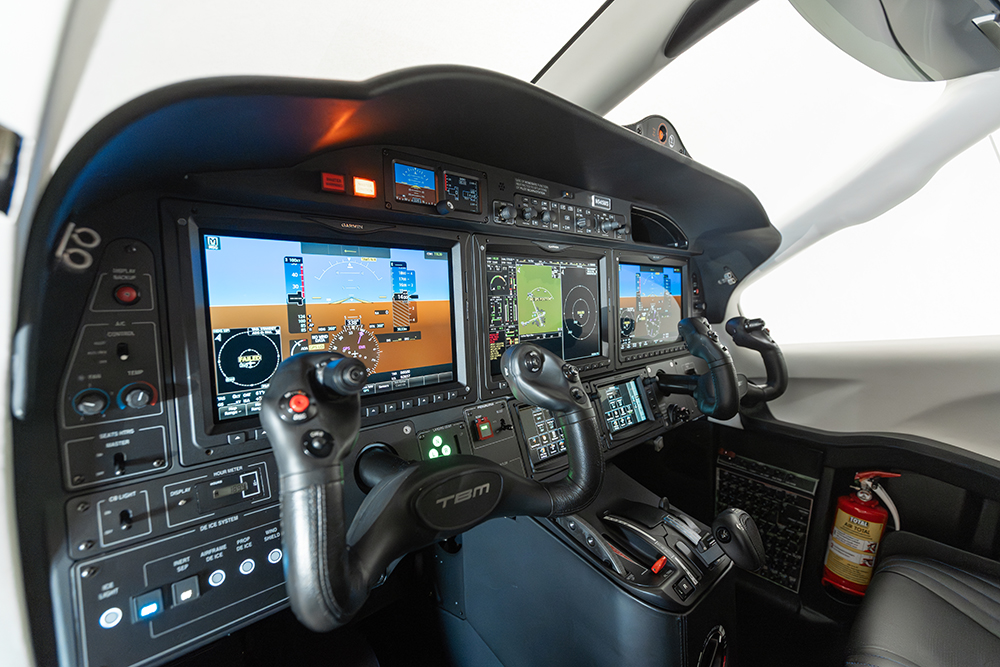

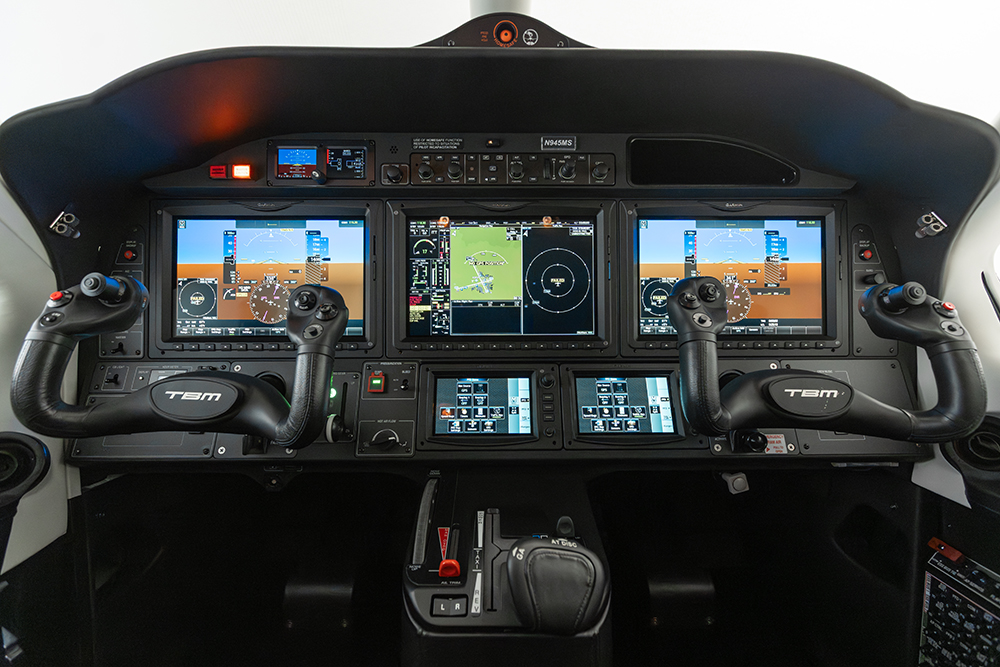

• Garmin G3000 Avionics System
• 1 GMA 36B Audio controller with Bluetooth audio link and integrated marker beacon receiver, intercom and public address capability
• 2 GDU 1250W, 12’’ WUXGA high resolution PFD Primary Flight Displays
• 1 GDU 1250W, 12” WUXGA high resolution MFD Multi- Function Display with engine, pressurization, electrical, fuel, flaps and trims indication, Crew Alerting System (CAS), checklist capability, aircraft synoptics and navigation mapping system
• 2 GIA 64W Nav/Com/ILS/WAAS GPS
• 2 GEA 71B Engine and airframe interface unit
• 2 GRS 79 Attitude and Heading Reference System (AHRS)
• 2 GMU 44 triaxial magnetometer
• 2 GDC 72B digital air-data computers w/ dual probe system
• 2 GTX 345 Mode S Extended Squitter transponder (#1) ADS-B In & out
• 2 GTC 580 Tactile Controllers conveniently located on the reclined section of the panel
• 1 GMC 711 AT autopilot and autothrottle mode controller located in upper central panel
• 4 GSA 81 torque flight servos (yaw, pitch, pitch trim and roll)
• 1 GSA 87 Servo actuator for Autothrottle
• 1 GTA 82 adapter for yaw auto trim device
• MD302 Back up Attitude, Airspeed, Altitude and heading digital display, 2 screens instrument with MD32 remote magnetometer
• LPV, LNAV/VNAV (including Baro VNAV) approaches support and advisory vertical guidance for LP, LNAV and Visual approaches
• ESP Electronic Stability and under speed Protection
• AOA/stall indicator and Stick shaker based on heated probe
• Smooth transition from barometric VNAV to Glideslope/path
• Surface Watch® for airport environment awareness
• Auto-Ice protection system with ice detection sensor
• LVL Level button to roll level and hold altitude
• EDM Emergency Descent Mode
• 1 Flightstream FS510 Bluetooth/Wifi allowing Tablet to Avionics secured exchange information channel
• Airframe de-icing control panel
• Inertial separator control
• Landing gear control panel
• Electric generation controls and monitoring on overhead panel
• Dedicated master warning and caution for Crew Alerting System message acknowledgement
• Voice Alert System
• Cabin temperature control (dual zone, with override capability)
• Heated stall warning system
• Digital chronometer displayed on GDU
• Digital Flight time hourmeter
• Instrument panel lighting, CB dedicated switch lighting
• Flight Data Recorder
• RVSM Package
• Garmin GTS 820 Traffic Advisory System
• WX 500 Stormscope
• Garmin GWX 70 Four Color Radar with Turbulence detection and Ground Suppression
• Garmin GDL69 XM Data link weather and XM music
• Jeppesen Chart View
• Synthetic Vision
• GSR56 Integrated Data Link Sat Phone for Text and Talk
• HomeSafe™ Autoland
